SR-45D

OEM Infrared or Radio Frequency Remote Control

Model: SR-45D — 45-Button OEM Remote Control

Description:

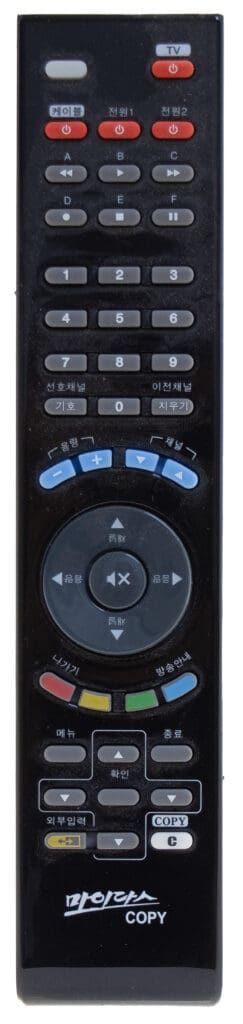

The SR-45D is a 45-button OEM remote control featuring a rubber keypad and powered by AAA x 2 batteries. The pictured example includes navigation keys with a center enter button and numeric keypad placement.

Customization Options:
Custom design options include key colors, case color, and backlighting.

Transmission Options:
Available with infrared (IR) and radio frequency (RF) transmission.
Compatible with Universal Remote Control (URC) infrared device databases for integration into the remote control design.

General Specifications

Max Keys:

45

Dimensions:

8.3 x 1.7 x 1.1in. 212 x 43 x 27mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
