Low Volume Infrared Receiver

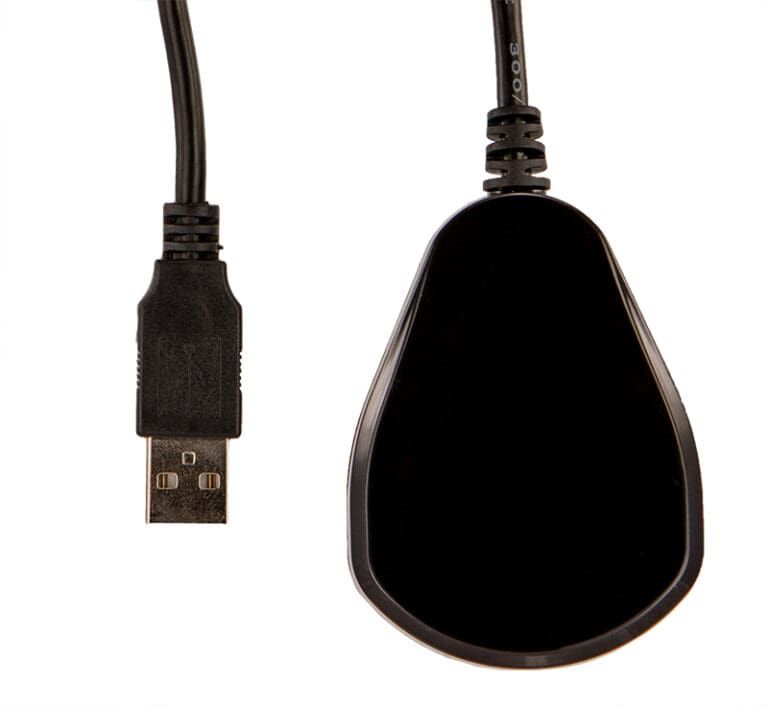

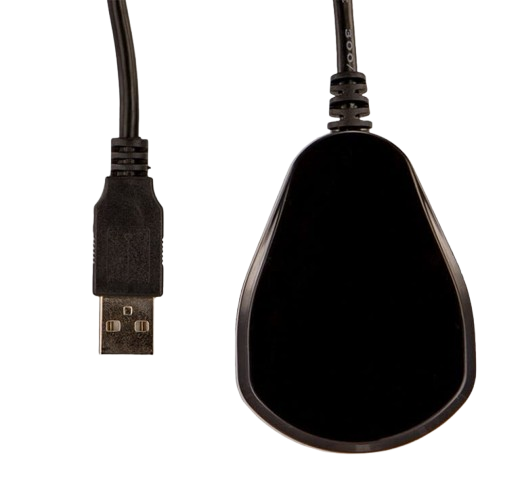

The RCV-3000 is an infrared to USB receiver. It will decode most major IR protocols and output a simple ASCII equivalent of the code received. It uses a USB controller from FTDI to send a serial command through a USB port using a Virtual COM Port (VCP) driver. The RCV-3000 includes a 1.5M USB Type A cable and an optional velcro sticker for attaching the receiver to a fixed surface.

General Specifications

Dimensions:

2.0 x 2.0 x 0.75 in

50 x 50 x 19mm

Cable Connector:

USB Type A

Cable Length:

1.5M

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~10mA

Transmission Distance:

~6-9m

IR Frequency Options:

38KHz

RF Frequency Options:

N/A

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

No

Carrier Frequency:

No

Cable Length:

No

Cable Connector:

No

Connector Type:

No

Case Color:

No

Case Size:

No

RF Option:

No
