OEM Infrared or Radio Frequency Remote Control

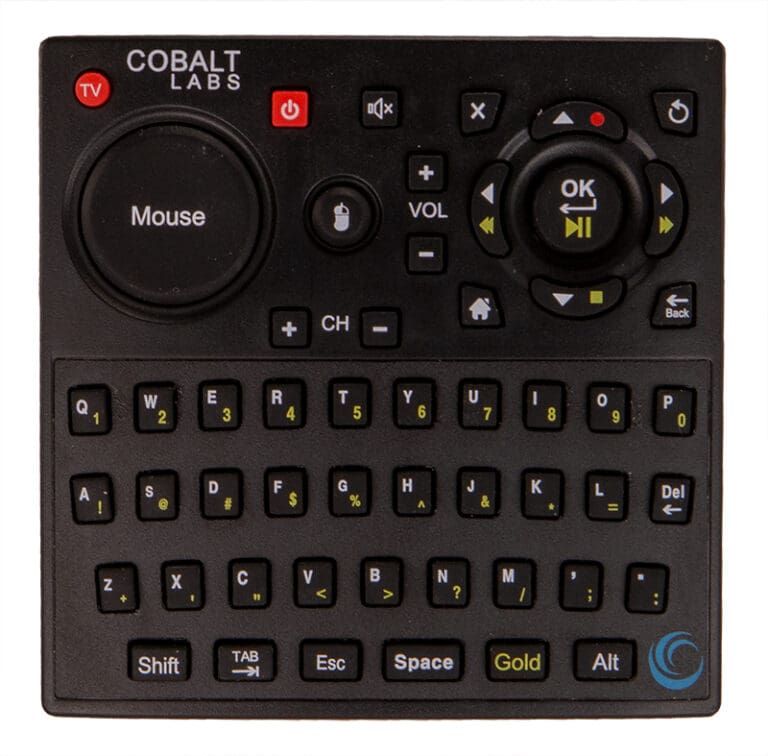

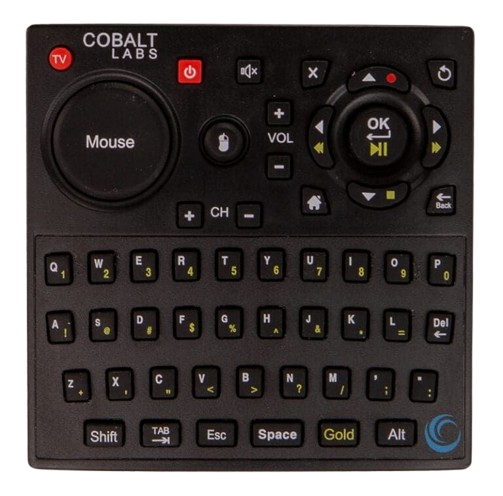

The SP-60A is a QWERTY keyboard style OEM remote control enclosure with a 60 button rubber keypad. It uses AAA x 2 batteries and can be configured for infrared (IR) or radio frequency (RF) applications.

General Specifications

aMax Keys:

60

Dimensions:

3.4 x 3.4 x 0.8in.
86 x 86 x 20mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
