OEM Receiver

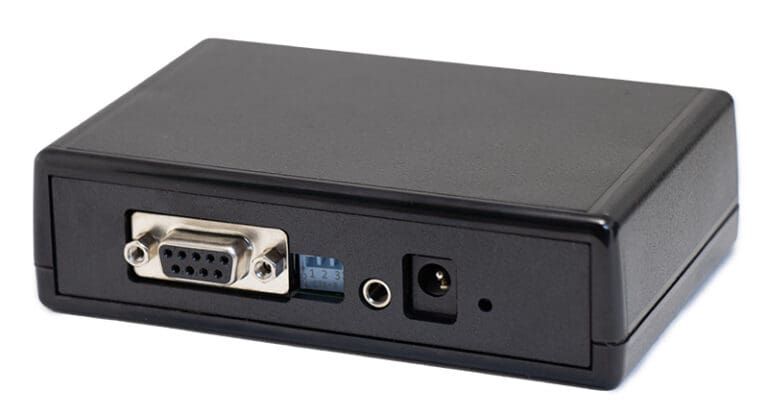

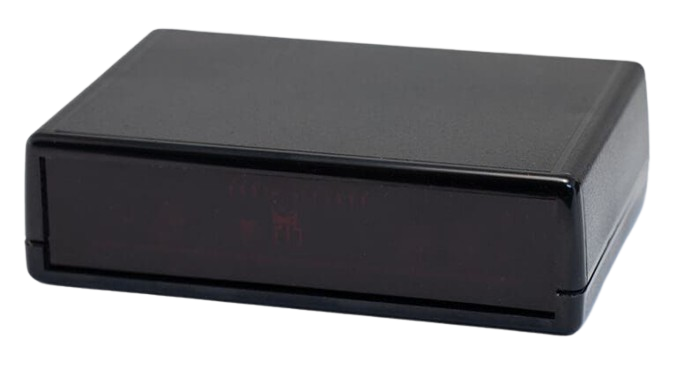

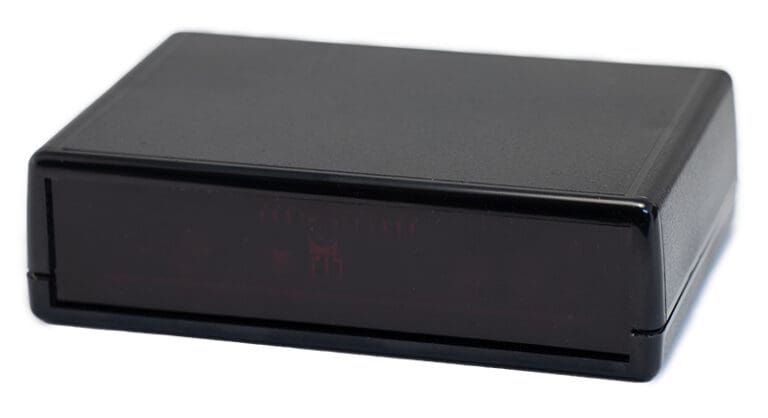

The RCV-5000 is an infrared to RS232 receiver, which will decode major consumer IR protocols and output a simple ASCII string based on the code received. Supported protocols include NEC, RC5, Sony, Panasonic, Toshiba and Mitsubishi.

General Specifications

Dimensions:

4.25 x 3x1.25 in

107 x 76 x 31mm

Cable Connector:

DB9 Male

Cable Length:

2M

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~100mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-38KHz

RF Frequency Options:

N/A

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

Yes

Cable Connector:

Yes

Connector Type:

Yes

Case Color:

Yes

Case Size:

No

RF Option:

No
