SR-40

OEM Infrared or Radio Frequency Remote Control

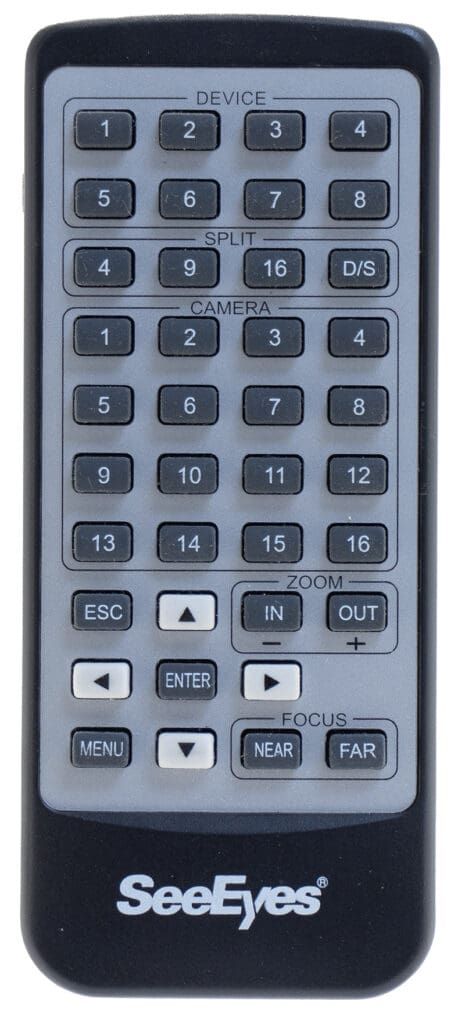

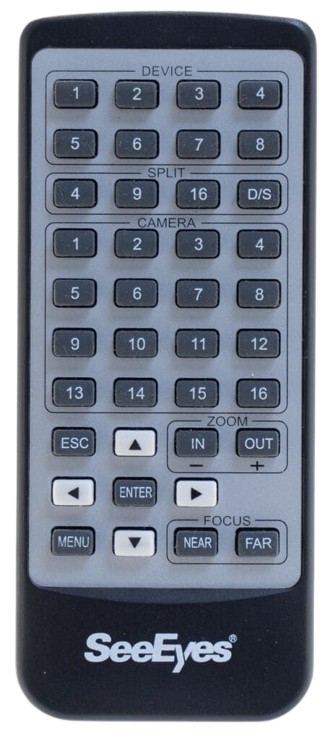

Model: SR-40 — 40-button OEM Remote Control

Power: Operates on one (1) CR2025 lithium coin battery

Key Features:

  • 40-button rubber keypad
  • Simple 4-column by 10-row key matrix for flexible key configurations
  • Custom design options available including key colors, case color, and backlighting

Transmission Options:

  • Supports both infrared (IR) and radio frequency (RF) configurations
  • Universal Remote Control (URC) infrared device databases available for integration

General Specifications

Max Keys:

40

Dimensions:

4.75 x 2 x 0.55in.
121 x 51 x 14mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
