RCV-2000

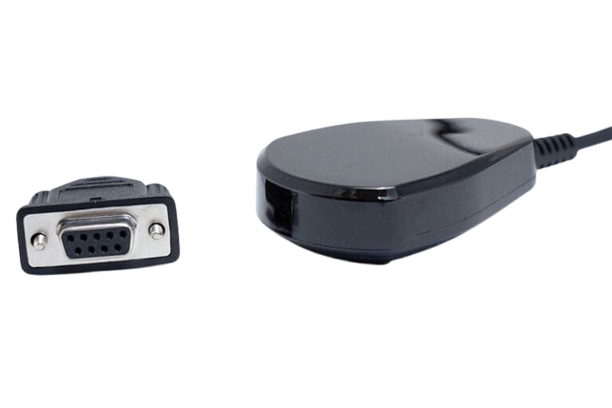

Black adapter with a 9-pin serial connector and a rounded end connected by a black cable.

OEM Receiver

The RCV-2000 is a receiver enclosure that can be used for infrared or radio frequency applications with serial output. The cable length and connector type can be specified based on the application.

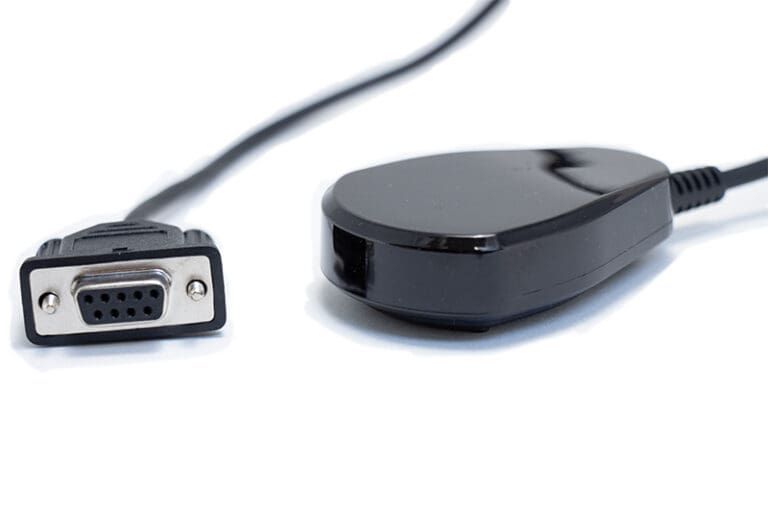

A black infrared receiver with a connected serial cable, against a white background.

General Specifications

Dimensions:

2.0 x 2.0 x 0.75in

50 x 50 x 19mm

Cable Connector:

DB9 Male or TBD

Cable Length:

2M or TBD

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~100mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

Yes

Cable Connector:

Yes

Connector Type:

Yes

Case Color:

Yes

Case Size:

No

RF Option:

Yes

Interested in this product?

Complete the contact form and submit your product

requirements. A representative from Celadon will contact

you to discuss your project in more detail.

Contact Us
