OEM Infrared or Radio Frequency Remote Control

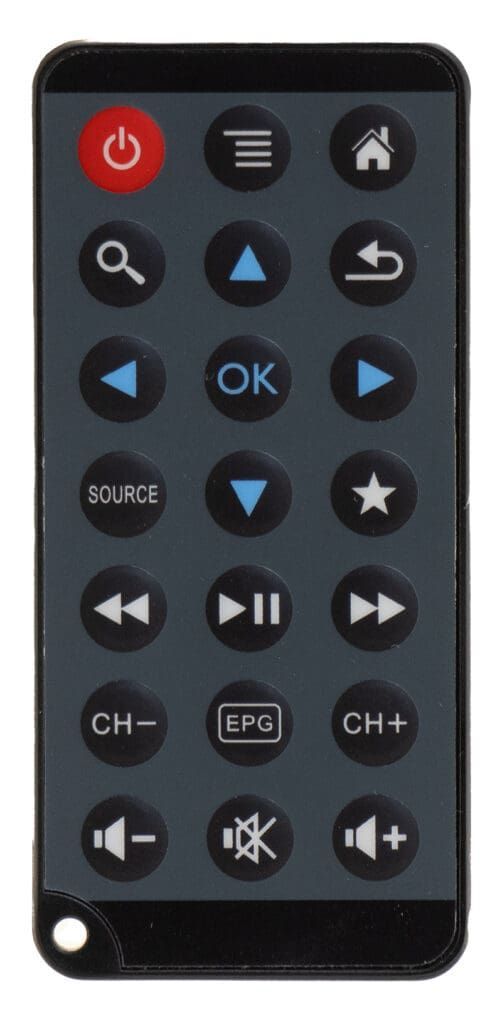

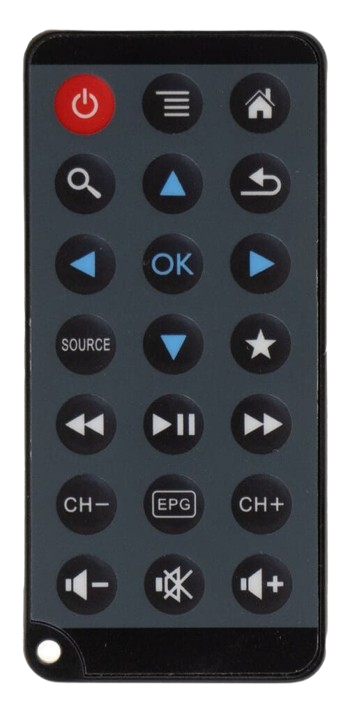

Model: SH-21A — Credit card-style OEM remote control

Power: Operates on one (1) CR2025 lithium coin-style battery

Key Features:

  • 21-button membrane keypad
  • Slim, credit card-style design with integrated lanyard hole
  • Compact and lightweight for portable use
  • Supports infrared (IR) and radio frequency (RF) transmission

Availability: Offered in low to medium volumes

General Specifications

Max Keys:

21

Dimensions:

3.4 x 1.6 x 0.25in.
86 x 40.6 x 6.4mm

Keypad Type:

Membrane

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
