SP-36

OEM Infrared or Radio Frequency Remote Control

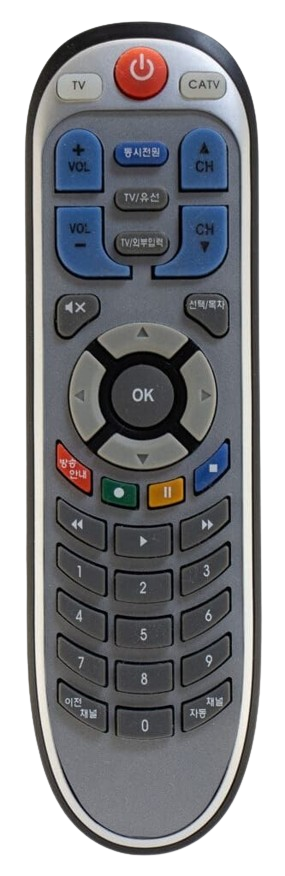

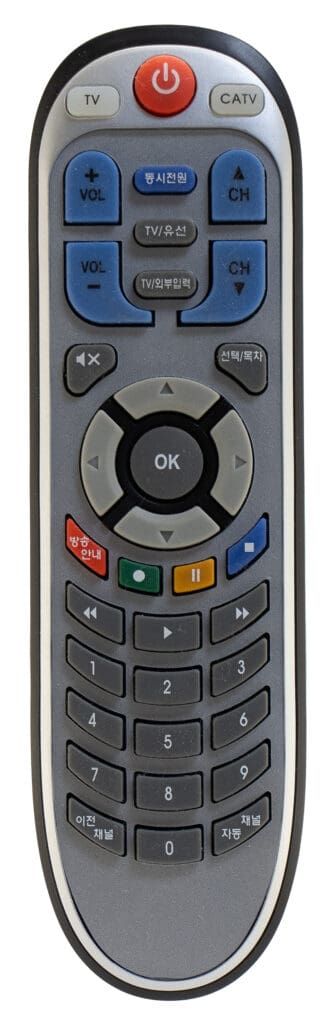

Model: SP-36 — 36-button OEM Remote Control

Power: Operates on two (2) AAA batteries

Key Features:

  • 36-button rubber keypad design
  • Configurable for both infrared (IR) and radio frequency (RF) applications

Compatibility:

  • Supports Universal Remote Control (URC) infrared code libraries for seamless integration

Applications:

  • Television (TV)
  • Monitors
  • Audio Visual (AV) systems
  • Cable Boxes and Set Top Boxes (STB)
  • Video and Satellite equipment
  • Consumer Electronics products

General Specifications

Max Keys:

36

Dimensions:

6.75 x 1.85 x 1.0in.
171 x 47 x 25.4mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
