OEM Infrared or Radio Frequency Remote Control

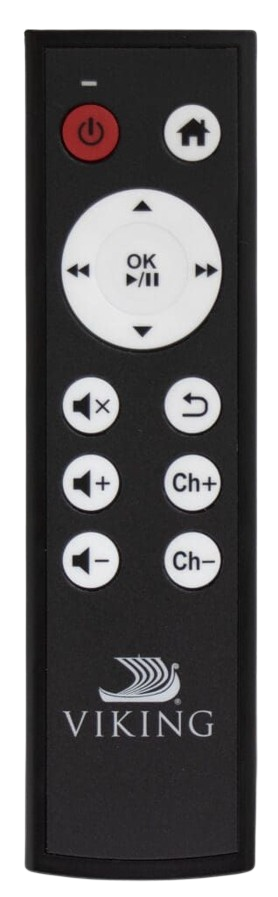

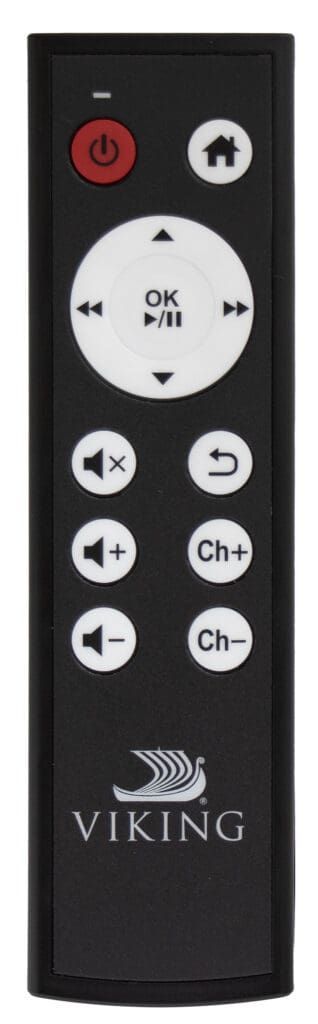

Model: SH-15A — 15-button OEM remote control

Power: Operates on two (2) AAA batteries with screw-secured battery compartment

Key Features:

  • 15-button rubber keypad
  • Metal dome pads for enhanced tactile feedback
  • Durable construction for reliable performance
  • Supports infrared (IR) and radio frequency (RF) transmissions

Availability: Offered in low volumes with URC infrared database compatibility

General Specifications

Max Keys:

15

Dimensions:

6.3 x 1.7 x 0.8 in. 160 x 44 x 20mm

Keypad Type:

Silicone Rubber w/snap

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
