OEM Infrared or Radio Frequency Remote Control

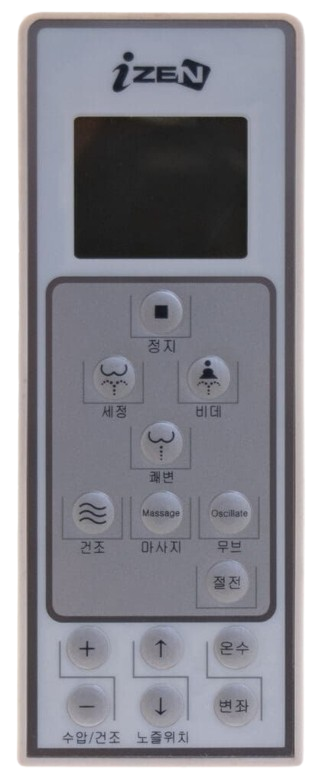

Model: SR-14L — OEM remote control enclosure with LCD panel

Power: Operates on two (2) AAA batteries

Key Features:

  • Up to 21-key membrane keypad with domed keys
  • Integrated LCD display with customizable layout
  • Easy-to-clean, hygienic surface
  • Optional polydome or metal dome tactile design
  • Supports infrared (IR) and radio frequency (RF) transmission

Availability: Offered in low to medium volumes

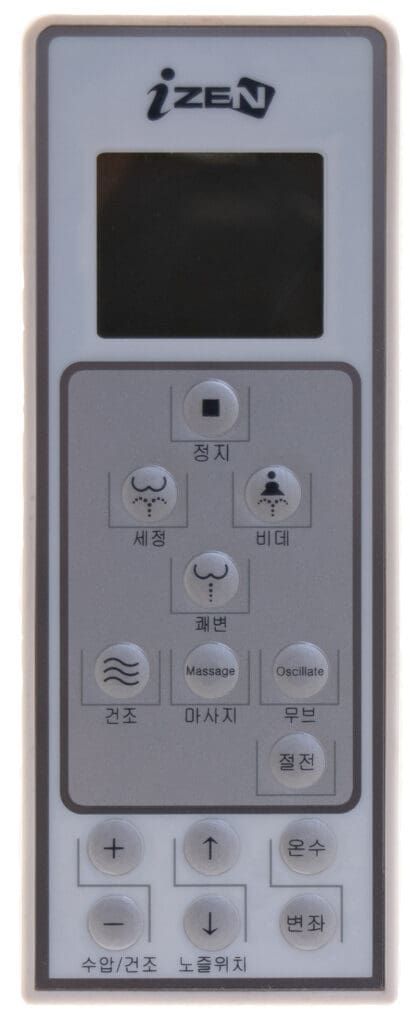

IZEN remote control panel with a display and various buttons for different functions.

General Specifications

Max Keys:

21

Dimensions:

5.7 x 2.2 x 1in.
145 x 55 x 23mm

Keypad Type:

Membrane

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
