OEM Infrared or Radio Frequency Remote Control

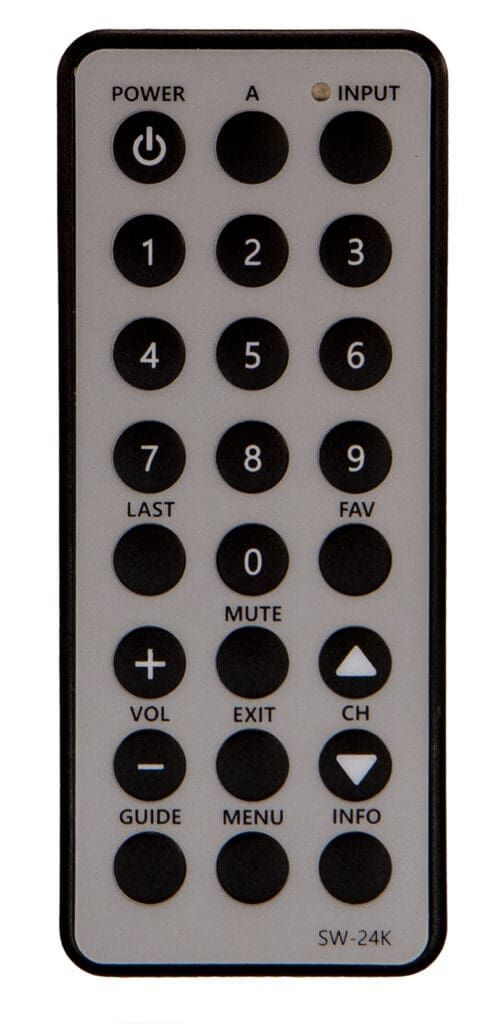

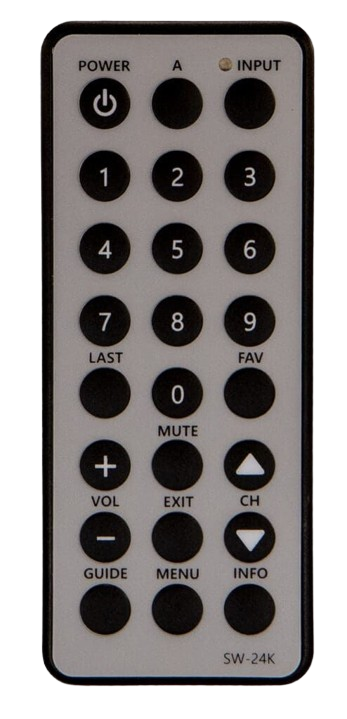

The SC-24 is an OEM remote control enclosure with a membrane keypad. The SC-24 model has a maximum of 24 buttons and is powered by two AAA batteries.
Membrane domed keypad key layout can be customized to fit your application requirements. Domed membrane keypads are also easy to wipe down to maintain a clean hygienic (hygenic) surface. Domes can be manufactured using polydome or metal dome (more snap) design.
Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

General Specifications

Max Keys:

24

Dimensions:

3.8 x 1.5 x 0.5in.
96.5 x 38 x 12.7mm

Keypad Type:

Membrane

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
