OEM Receiver

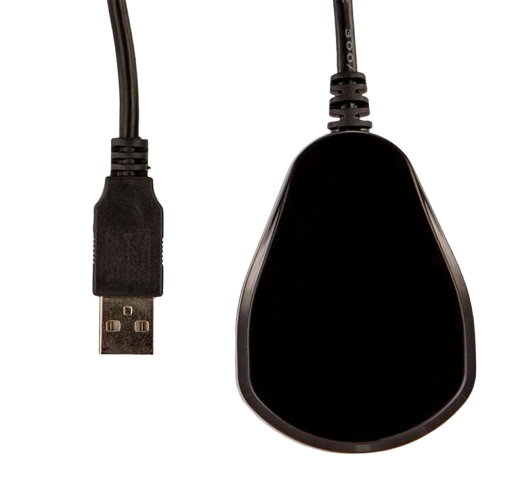

The RCV-3000 is an infrared or radio frequency to USB receiver. It can be configured to decode any IR or RF protocol and output an HID or serial command via USB. The USB cable length can be specified per application. The receiver can be mounted in a horizontal or vertical orientation.

General Specifications

Dimensions:

2.0 x 2.0 x 0.75in

50 x 50 x 19mm

Cable Connector:

USB Type A or TBD

Cable Length:

2M or TBD

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~20mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

Yes

Cable Connector:

Yes

Connector Type:

Yes

Case Color:

Yes

Case Size:

No

RF Option:

Yes
