OEM Infrared or Radio Frequency Remote Control

The SR-32DA is a 32 button OEM remote control. It uses a rubber keypad and AAA x 2 batteries.

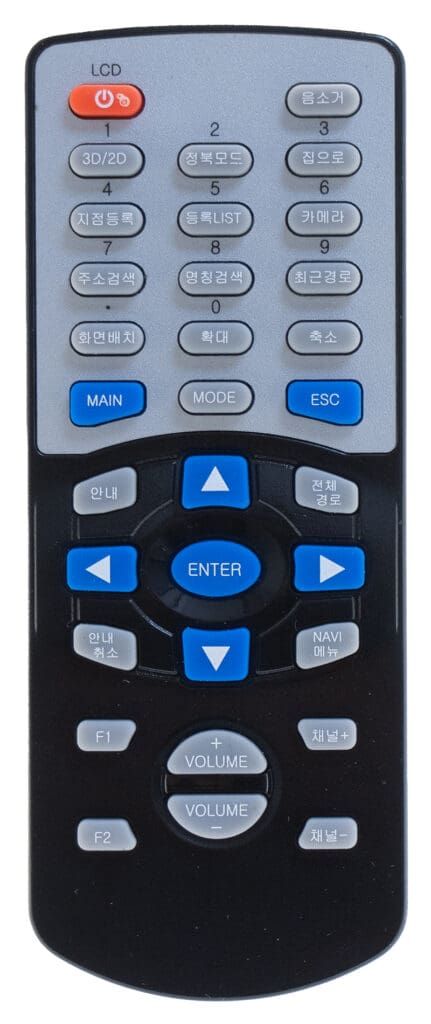

Pictured example shows navigation keys with center enter button, up and down keys and numeric keypad placement. Upper key area uses an overlay so keys in this area can have a custom configuration. Custom design options like key colors, case color and backlighting are available.
Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

General Specifications

Max Keys:

32

Dimensions:

5.2 x 2 x 0.38in.
133 x 52 x 12.1mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
