OEM Receiver

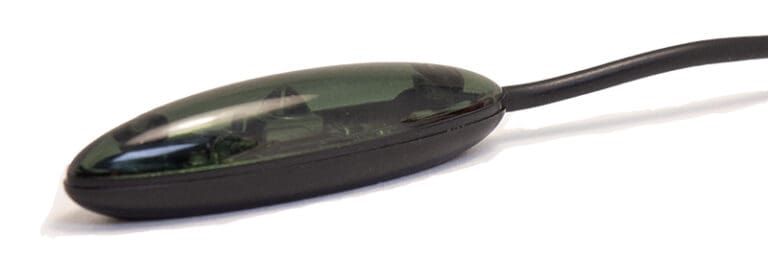

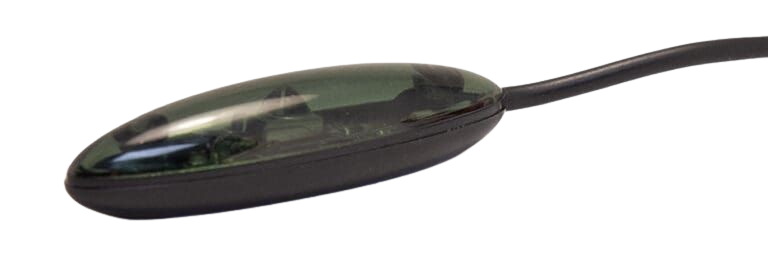

The RCV-1700 is an infrared or radio frequency receiver module that is designed to be mounted on vertical surfaces. The cable length and connector type can be specified based on the application.

General Specifications

Dimensions:

1.9 x 0.5 x 0.5in
48 x 13 x 11mm

Cable Connector:

3.5mm Stereo Jack or TBD

Cable Length:

2M or TBD

Feedback LED:

Yes

Back Label:

No

Technical Specifications

Power Consumption:

~1.2mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

Yes

Cable Connector:

Yes

Connector Type:

Yes

Case Color:

Yes

Case Size:

No

RF Option:

Yes
