OEM Receiver

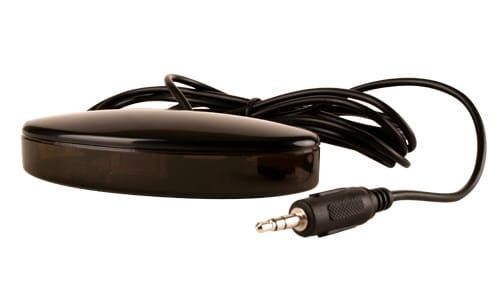

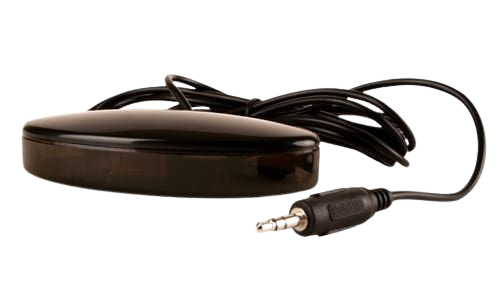

The RCV-2700 is a receiver enclosure that can be used for infrared or radio frequency applications with serial output. The cable length and connector type can be specified based on the application.

General Specifications

Dimensions:

4.0 x 1.75 x 0.9in
101 x 44 x 22mm

Cable Connector:

DB9 Male or TBD

Cable Length:

2M or TBD

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~100mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

Yes

Cable Connector:

Yes

Connector Type:

Yes

Case Color:

Yes

Case Size:

No

RF Option:

Yes
