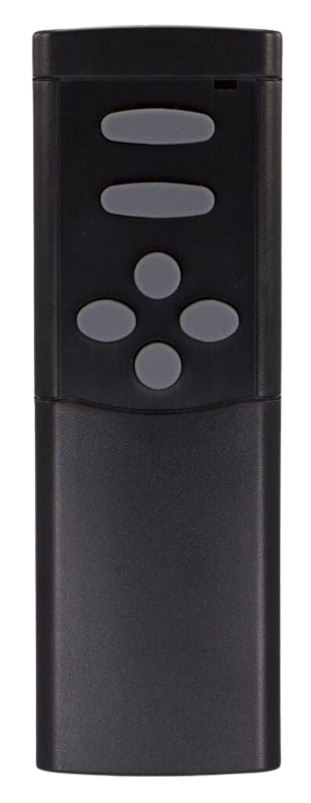

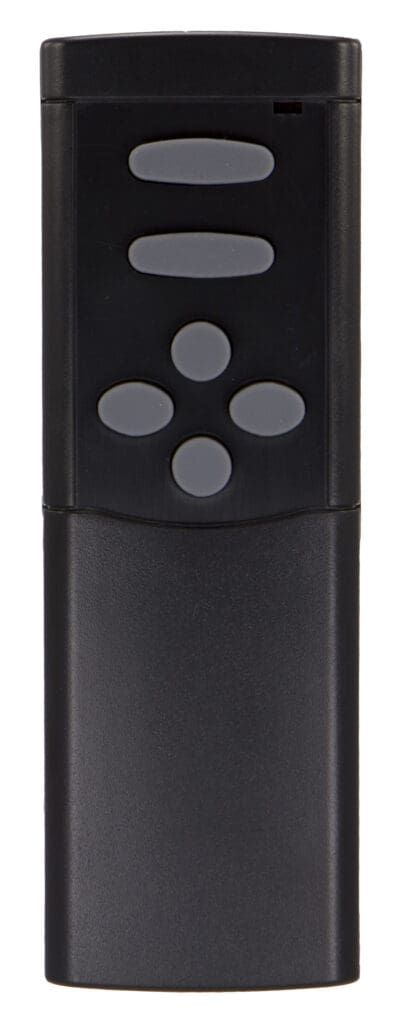

BW-7070


OEM Infrared or Radio Frequency Remote Control

  • Model: BW-7070 — 6-key OEM remote control with 8 functions
  • Power Source: Operates on 2 × AA batteries
  • Design:
  • Two keys function as left-right rocker keys
  • Rubber keypad with full-face overlay for custom key configurations
  • Customization Options:
  • Key and case color variations
  • Backlighting options
  • Custom infrared (IR) and radio frequency (RF) transmission options
  • Integration: Compatible with Universal Remote Control (URC) infrared device databases
  • Availability: Offered in low volumes with IR transmission protocols

General Specifications

Max Keys:

6

Dimensions:

4.76 x 1.65 x 0.6in.
126 x 42 x 17mm

Keypad Type:

Silicone Rubber

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

Yes

Batteries:

2 x AAA


Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
