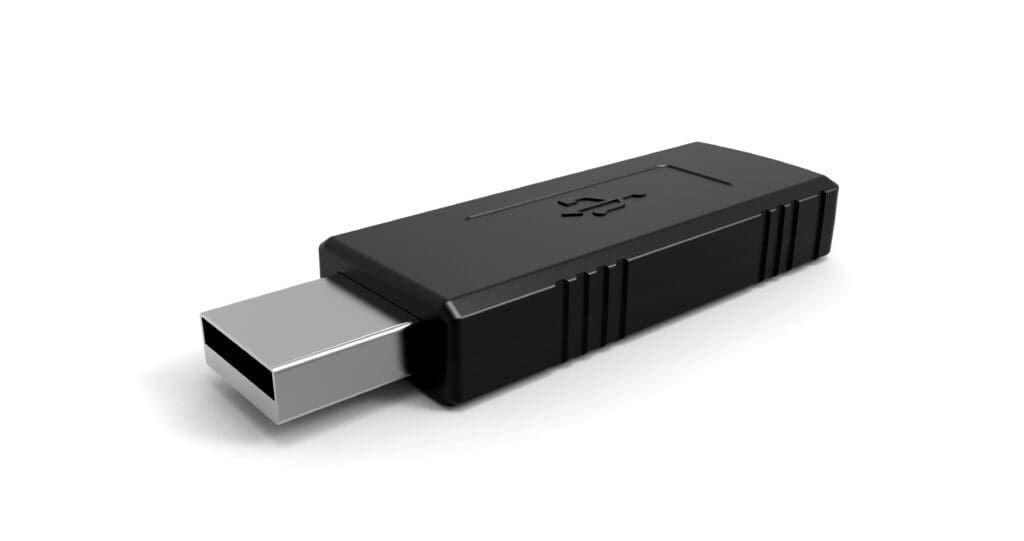

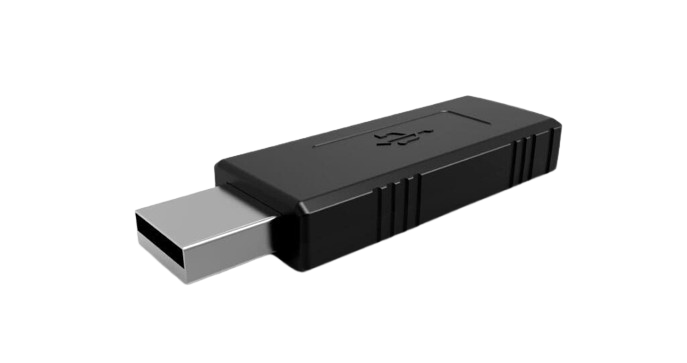

\RCV-4000

OEM Receiver

The RCV-4000 is an infrared (IR) or radio frequency (RF) USB dongle. It can be configured to decode IR or RF protocols. The RCV-4000 can output an HID or serial command through the USB port to a host device.

General Specifications

Dimensions:

2.4 x 0.8 x 0.4in
62 x 20 x 9mm

Cable Connector:

USB Type A

Cable Length:

N/A

Feedback LED:

Yes

Back Label:

Yes

Technical Specifications

Power Consumption:

~500mA

Transmission Distance:

~6-9m

IR Frequency Options:

36-56KHz

RF Frequency Options:

27MHz - 2.4GHz

Operating Temperature:

+5C To +40C

Storage Temperature:

-40C To + 70C

Humidity Range:

10% - 90% Non-Condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Carrier Frequency:

Yes

Cable Length:

No

Cable Connector:

No

Connector Type:

No

Case Color:

Yes

Case Size:

No

RF Option:

Yes
