SR-9D

OEM Infrared or Radio Frequency Remote Control

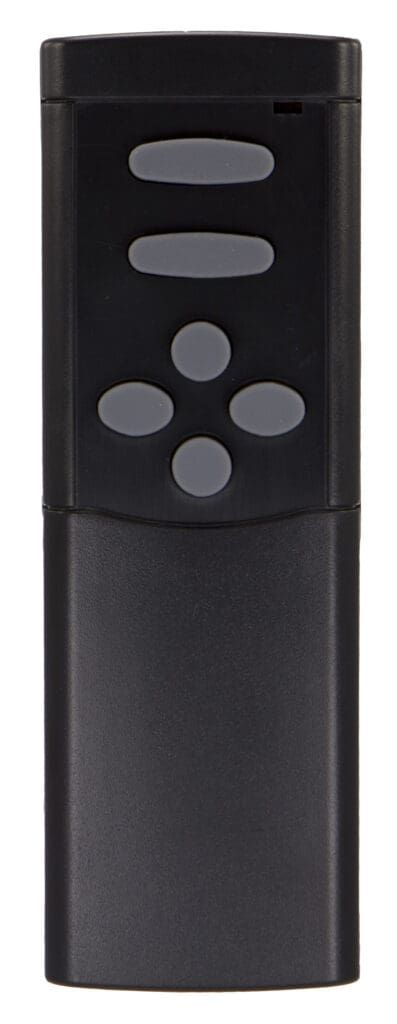

The BW-7070 is a 6 key OEM remote control with 8 functions. The BW7070 is powered with 2 AA batteries.
Two keys serve as left-right rocker keys. The BW7070 remote control model utilizes a rubber keypad. Full face overlay allows for unique key configurations to conform to your remote control application design requirements.
Custom design options like key colors, case color and backlighting are available.
Custom infrared (IR) and radio frequency (RF) transmission options available. Universal Remote Control (URC) infrared device databases are also available for integration into the remote control design.

Available in Low Volume, with infrared (IR) transmission protocols.

General Specifications

Max Keys:

9

Dimensions:

2.2 x 1.4 x 0.3in.
57 x 35 x 8mm

Keypad Type:

Membrane

Feedback LED Available:

Yes

Overlay Available:

Yes

Back Label Available:

Yes

Feedback LED:

Yes

IR Lens:

No

Batteries:

1 x CR2025 Lithium Coin

Technical Specifications

Power Consumption:

Approx. 50mA at IR transmit

Transmission Distance:

20-30ft (6-9m) Standard

IR Frequency Options:

36KHz-56KHz

RF Frequency Options:

27MHz-2.4GHz

Operating Temperature:

+5C to +40C

Storage Temperature:

-40C to +70C

Humidity Range:

10% to 90% non-condensing

Compliance:

RoHS, REACH

Available Options

Custom Codes:

Yes

Button Colors:

Yes

Button Printing:

Yes

Case Color:

Yes

Custom Overlay /

Membrane Keypad:

Yes

RF Option:

Yes
